Commercial Soft Serve Ice Cream Machine Model 9238 – Full Product Introduction
1. Product Overview

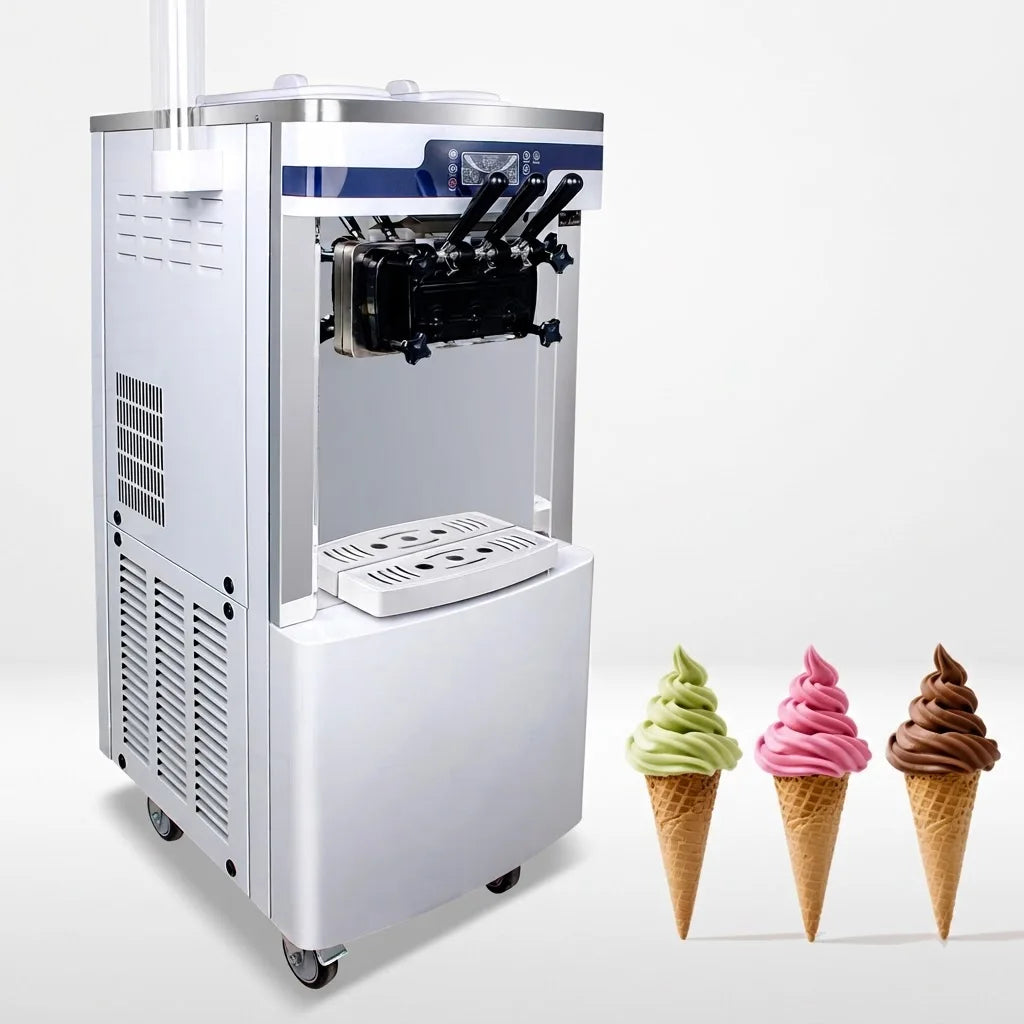

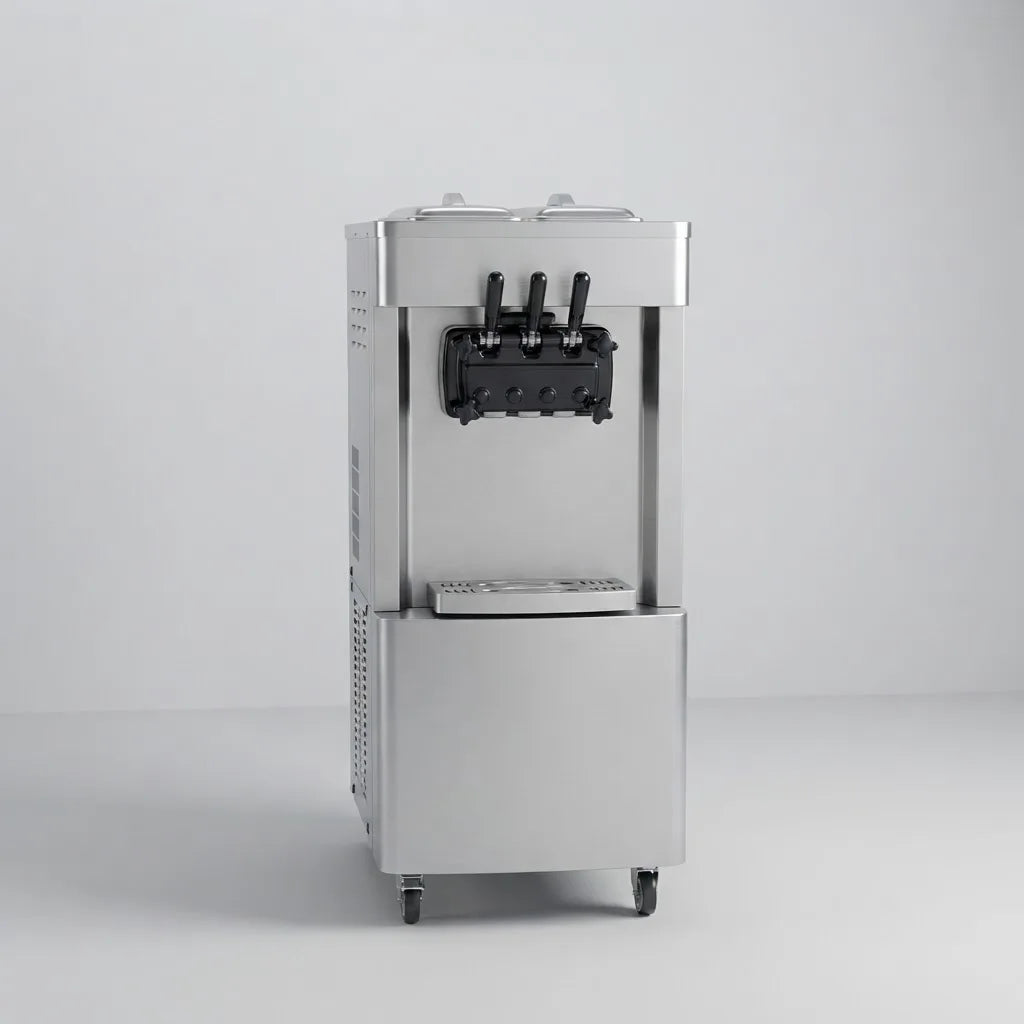

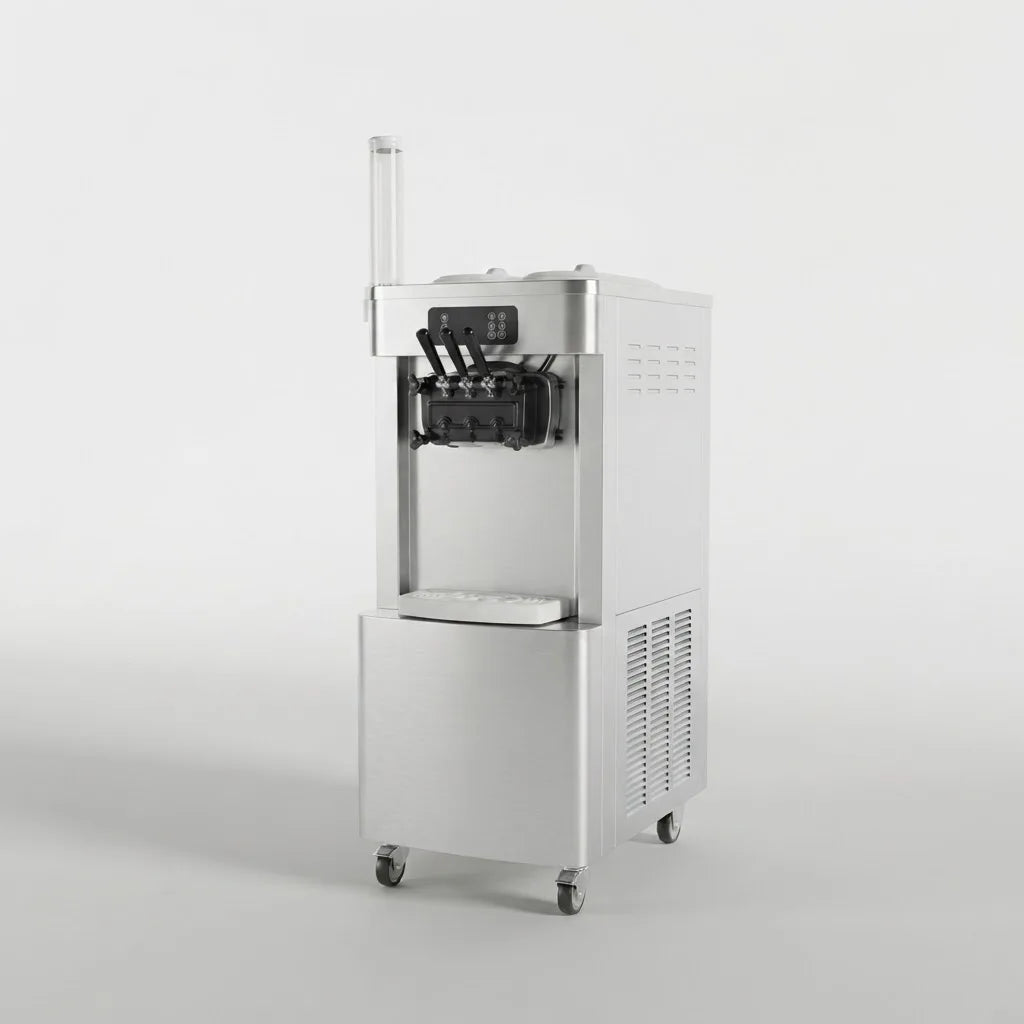

Model 9238 vertical three-flavor soft serve ice cream machine is a high-performance commercial frozen dessert equipment tailor-made for milk tea shops, cafes, restaurants, dessert stores, convenience stores and snack bars. Equipped with two independent 5.5L large refrigeration cylinders and three dispensing handles, it supports two single flavors plus one mixed twist flavor at the same time, perfectly meeting customers’ diverse taste demands. Built with full stainless steel body and universal movable casters, this machine balances durability, mobility and aesthetic appearance, becoming an ideal profit-making equipment for catering retail businesses.
2. Powerful Core Cooling & Production Performance
At the heart of Model 9238 lies a 2450W high-efficiency compressor, delivering stable and powerful cooling capacity to support a high daily output of 5.81–7.92 gallons of soft ice cream per hour. The oversized 5.5L freezing cylinder shortens the material freezing cycle greatly, allowing the machine to quickly produce creamy, smooth ice cream without long waiting times during peak business hours.
Adopting industry-standard R290 environmentally friendly refrigerant, the cooling system achieves fast temperature drop, stable refrigeration effect and lower power consumption. Compared with ordinary ice cream machines on the market, it cuts daily electricity costs significantly, realizing the core advantage of "peak production performance with lower utility bills".
3. Intelligent One-Touch LCD Control System
This model features a full smart LCD digital control panel with visualized real-time data display, including hardness value, material freshness status, standby mode and cleaning reminder. Multiple working modes are integrated for flexible switching:
- Auto Mode: Automatic constant temperature control to keep ice cream in optimal soft texture all day long;
- Manual Mode: Manual adjustment of hardness according to seasonal temperature and personal taste preference;
-
Exclusive Pre-cooling Function: Unique pre-cooling technology keeps raw materials fresh overnight without repeated replacement, effectively reducing raw material waste, saving operating time and improving store hygiene standards.
One-click automatic cleaning function is the highlight of this machine: you only need to add clean water to the material tank and tap the CLEAN button, the machine completes internal pipeline self-flushing automatically, greatly lowering manual cleaning workload and avoiding sanitary dead angles. The panel also supports independent setting of hard/soft ice cream texture and puffing degree, so you can customize ice cream taste freely.
4. Humanized Easy Maintenance Design
We fully consider the daily maintenance troubles of store operators when designing Model 9238. It adopts a tool-free quick-release side panel structure—no screwdrivers or extra tools required, you can easily take off the outer shell in seconds to inspect the compressor, condenser and internal wiring for fast fault checking and routine maintenance.
The whole machine shell is made of thickened robust stainless steel, which resists corrosion, oil stains and daily scratches, easy to wipe clean with a damp cloth to keep the equipment bright and new for long-term use. Four silent movable universal casters are installed at the bottom, making it effortless to move the machine for deep cleaning or position adjustment in the shop. The vertical cup holder below the dispensing outlet prevents dripping slurry from polluting the ground and keeps the operation area tidy. The top built-in large-capacity raw material storage tank with a dedicated straw tube design reduces frequent refilling of ice cream base.
5. Stable & Sanitary Operation, Long Service Life
Every component of Model 9238 is strictly selected for long service life. The evaporator adopts copper-tin composite material matched with SUS304 food-grade stainless steel lining, which is safe for food contact and avoids rust contamination of raw materials. The built-in stable stirring motor ensures even mixing of ice cream base, delivering consistent creamy texture for every cone.
The multi-layer heat dissipation condenser with dense aluminum fin structure and 7-blade large cooling fan rapidly exhaust heat generated during operation, preventing overheating shutdown during continuous high-output work and extending the service life of the core compressor.
The three dispensing handles are ergonomically shaped with anti-slip knobs, allowing baristas to dispense ice cream smoothly with one hand during rush hours without fatigue. The mixed twist flavor handle can perfectly swirl two different colors of ice cream to attract customers and boost sales.
6. Wide Application & Customizable Voltage Options
Model 9238 supports customized voltage and plug configurations to match global market standards:
- European countries (Italy, Congo): 230V 50Hz, Type L / Type E plug optional;
- North America (Mexico): 115V 60Hz, American standard plug;
- Middle East markets: 220V 60Hz, British standard plug.
It is widely applicable to dessert shops, fast-food restaurants, hotel cafeterias, amusement parks, gas station convenience stores and mobile food trailers. Whether you run a small milk tea shop or a large catering chain, this three-flavor soft ice cream machine can create a high-margin dessert product line for your business, bringing stable extra income all year round.
7. Core Selling Points Summary
- 3-flavor design (2 single + 1 mixed twist), large 5.5L freezing cylinder, high hourly output up to 7.92 gallons;
- 2450W powerful energy-saving compressor, R290 eco-friendly refrigerant, lower electricity cost;
- Smart LCD control with pre-cooling, auto/manual mode and one-click auto cleaning;
- Tool-free quick disassembly panel, convenient daily inspection and maintenance;
- Full stainless steel anti-rust body + movable casters, easy to clean and shift;
- Food-grade SUS304 internal parts, meet global food safety standards;
- Global voltage & plug customization, suitable for all overseas markets.
